Brand Name : | Summery |
Model Number : | Iso2338 Dowel Pin |
Certification : | Iso2338 |
Payment Terms : | Western Union |

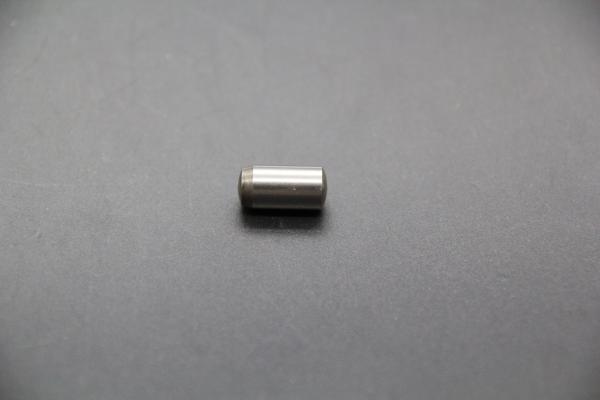

Iso2338 Dowel Pins Parallel Pins 3m6x10 steel

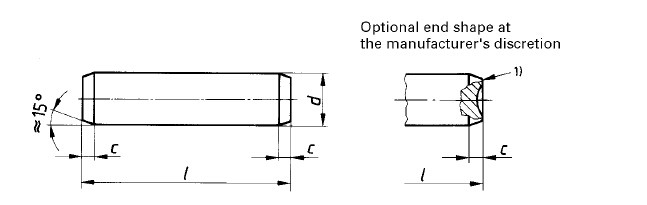

This International Standard specifies the characteristics of
parallel pins of unhardened steel and austenitic
stainless steel, with nominal diameters d from 0,6 mm to 50 mm
inclusive.
EXAMPLE
An unhardened steel parallel pin, with nominal diameter d = 63mm,
tolerance class m6 and nominal length
l = 10 mm is designated as follows:
Dowel pin ISO 2338 – 3 m6 x 10 – St
![]() |
